Mining
Severe abrasion, dust, moisture and chemicals from extraction processes - coatings that endure where other systems fail within weeks.

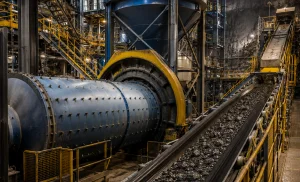

The most abrasive environment in industry
Mining operations subject equipment and structures to a relentless combination of particulate abrasion, mechanical impact, moisture and process chemicals - acids generated by sulfide oxidation, mineral slurry at extreme pH and leaching solutions. A conventional coating does not survive this environment. Systems formulated specifically for mining are thicker, more abrasion-resistant and chemically compatible with the process environment.
Applications and systems

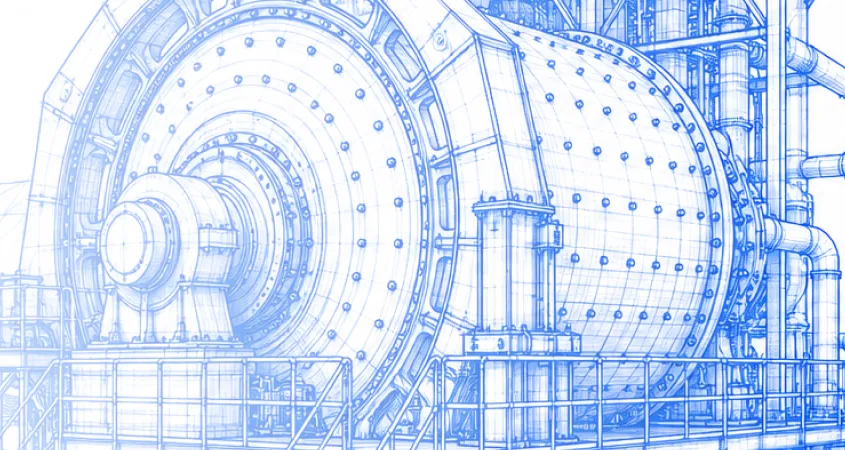

SAG and ball mills - interior
Ceramic and ultra-high-build epoxy systems with mineral fillers for abrasion and impact resistance in mill internal linings.
Chutes, troughs and transfer points
High-abrasion epoxy with mineral and ceramic fillers - applied in multiple coats to a total thickness > 3 mm at critical impact points.
Ore silos and hoppers
High-build epoxy systems for silo internal lining - protection against abrasion and corrosion from acid condensation and wet concentrate.
Plant steel structures
Zinc Clad® + Macropoxy® + PU finish for structures in C4/C5-I environments with abrasive dust and moisture - a 3-coat system with a 10+ year life cycle.
Heap leach pads - geomembranes and floors
Concrete and steel coatings compatible with leaching solution (SX-EW) - resistance to dilute sulfuric acid and copper sulfate.
Process tanks - CIL/CIP and flotation
Epoxy systems resistant to cyanide, flotation reagents and mineral slurry at variable pH - including alkaline and acidic environments.
Key products
Macropoxy® 646
High-build single-coat intermediate - for mining plant structures in C4/C5 corrosive environments.
Learn more
Epo-Phen®
Resistance to process acids, cyanide and mining reagents. For CIL and CIP process tanks and leaching systems.
Learn moreDura-Plate® 235
For immersion tanks in acidic or alkaline service - internal surfaces of flotation tanks, electrolytic cells and thickeners.
Learn more
Zinc Clad® IV
Cathodic protection of steel structures in high-particulate, humid and acid-mist environments - the base primer for 3-coat systems.
Learn more
Talk to people who understand your asset, not just paint
Describe your asset's condition and the environment it operates in. Our technical team will come back with a specification aligned to the applicable standard — and the service life you expect from the system.
